In modern packaging, signage, and construction, one material stands out for its balance of strength, light weight, and weather resistance: the corrugated plastic sheet. This versatile product is widely used in industries ranging from advertising to agriculture, and its unique structure offers benefits that many other materials can’t match. In this article, we’ll explore what a corrugated plastic sheet is, how it’s made, its key advantages, and why it has become a go-to solution for businesses and individuals alike.
1. Structure and Material Composition
At its core, a corrugated plastic sheet is made from high-impact polypropylene resin. The sheet consists of two flat layers, called liners, with a fluted or ribbed layer sandwiched between them. This fluted center is what creates the “corrugated” structure, providing rigidity while keeping the sheet extremely light.
The design is somewhat similar to corrugated cardboard, except that instead of paper, the material is a durable plastic polymer. This gives it resistance to moisture, chemicals, and impacts that would quickly degrade paper-based products.
Synonyms like coroplast sheets and correx sheet refer to the same type of product, often used interchangeably depending on the region or manufacturer.
2. How Corrugated Plastic Sheets Are Manufactured

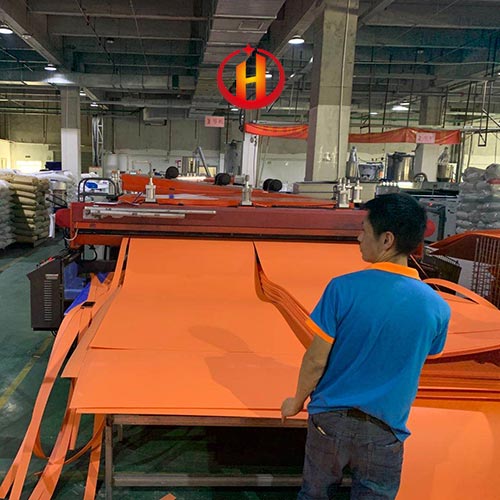

The manufacturing process begins with polypropylene resin pellets, which are melted down and extruded through a flat die. The molten material is then shaped into the three-layer structure, with the central layer formed into parallel ribs or flutes. The sheets are cooled, trimmed, and cut into standard sizes—often 4×8 feet, though custom dimensions are common.
Color pigments can be added during the extrusion process, giving the sheet a consistent color throughout. This means the surface won’t show scratches or chips as easily, and the color will not fade quickly under sunlight when UV stabilizers are added.
3. Key Advantages
3.1 Lightweight Yet Strong
A corrugated plastic sheet is surprisingly light for its strength, making it easy to handle, transport, and install. The fluted design maximizes rigidity without adding unnecessary weight.
3.2 Weather and Water Resistance
Unlike cardboard or wood, coroplast sheets will not absorb water. They remain intact in wet or humid environments, which makes them ideal for outdoor signs, construction barriers, and agricultural applications.
3.3 Chemical Resistance
Polypropylene is inherently resistant to many chemicals, oils, and solvents. This means correx sheet products can be used in industrial environments without degrading.
3.4 Reusability and Recyclability
Many businesses choose corrugated plastic because it can be reused multiple times before showing signs of wear. Additionally, polypropylene is recyclable, supporting sustainability goals.
3.5 Easy Customization
Corrugated plastic sheets can be easily cut, scored, bent, or even heat-welded into boxes, trays, or display stands. They can also be printed on directly or have vinyl graphics applied for signage purposes.
4. Common Applications
4.1 Signage and Displays
The advertising industry has embraced corrugated plastic sheet for making temporary signs, event boards, and election posters. The material’s smooth surface is excellent for digital printing, screen printing, and vinyl application.
4.2 Packaging Solutions
From reusable shipping boxes to protective layer pads, coroplast sheets provide a durable alternative to corrugated cardboard, especially where moisture or rough handling is expected.
4.3 Construction and Building
Builders use correx sheet products as floor protection, wall guards, and temporary barriers during renovation projects. The material shields surfaces from dust, paint, and mechanical damage.
4.4 Agriculture and Horticulture
In farms and greenhouses, corrugated plastic serves as plant bed liners, seedling protectors, and temporary fencing. Its resistance to chemicals also makes it suitable for fertilizer and pesticide handling areas.
4.5 Arts, Crafts, and DIY Projects
Hobbyists and makers value corrugated plastic sheets for their versatility. They can be shaped into model structures, used for lightweight panels, or even repurposed into storage containers.
5. Size, Thickness, and Color Options
Manufacturers offer corrugated plastic sheets in a wide range of thicknesses, typically from 2mm to 10mm. Thinner sheets are flexible and ideal for signage, while thicker ones provide greater rigidity for structural uses.
Standard dimensions such as 4×8 feet are common, but custom cuts are available for specialized applications. Colors range from basic white and black to bright yellow, red, blue, and green, allowing for visual branding and color-coded organization.
6. Choosing the Right Corrugated Plastic Sheet
When selecting corrugated plastic sheets for a project, there are several important factors to evaluate to ensure you get the best performance and value:
- Thickness: Thinner sheets (2–4mm) are ideal for lightweight signs, indoor displays, and temporary protection. Thicker sheets (6–10mm) provide greater rigidity and impact resistance for heavy-duty protection, construction barriers, or reusable packaging.
- Color: Choose colors that enhance branding, improve visibility, or match aesthetic requirements. Bright colors work well for safety signage, while neutral tones suit architectural applications.
- UV Protection: For outdoor projects, select sheets with UV stabilizers to prevent fading, brittleness, and structural weakening under prolonged sunlight exposure.
- Fire Retardancy: Some correx sheet products are treated to meet fire safety regulations, making them suitable for indoor public spaces or areas with strict building codes.
- Surface Finish: Smooth surfaces are best for printing, vinyl application, or graphics. Textured finishes offer better grip when used for floor protection or lining.
- Weight per Square Meter: Heavier sheets offer more durability but may be less flexible; lighter sheets are easier to handle but may have lower load-bearing capacity.
- Chemical Resistance Level: In industrial environments, ensure the sheet can resist the specific chemicals, oils, or cleaning agents it will encounter.
- Moisture Resistance Grade: For marine, agricultural, or greenhouse applications, check the water-resistance properties to ensure longevity in damp conditions.
- Custom Cutting and Fabrication: If you need non-standard sizes, pre-scored folds, or special shapes, confirm that your supplier can provide precise customization.
- Recyclability and Sustainability: If environmental impact is a concern, opt for sheets made from recyclable polypropylene with an established recycling pathway.
By carefully matching these specifications to your project requirements, you ensure that your corrugated plastic sheets deliver optimal performance, cost-efficiency, and long-term durability.
Conclusion
The corrugated plastic sheet is a perfect example of how a simple yet well-engineered design can revolutionize multiple industries. Whether you call them coroplast sheets, correx sheet, or just corrugated plastic, the material offers a rare combination of lightness, durability, and adaptability.
From signage and packaging to construction and agriculture, its applications are as varied as its users’ creativity. If you need a material that can withstand moisture, resist chemicals, and be customized with ease, corrugated plastic sheets are worth serious consideration.
